Mission Overview

Map of Observations



mission wavelength

Wavelength Coverage

mission coverage

Instrument In-Service Dates

Graphic of in-service dates for HST instruments. This information can also be found within a table further down the page under the Instruments section.

FGS; FOC; GHRS; FOS; HSP; WF/PC; WFPC2; NICMOS; STIS; ACS; COS; WFC3

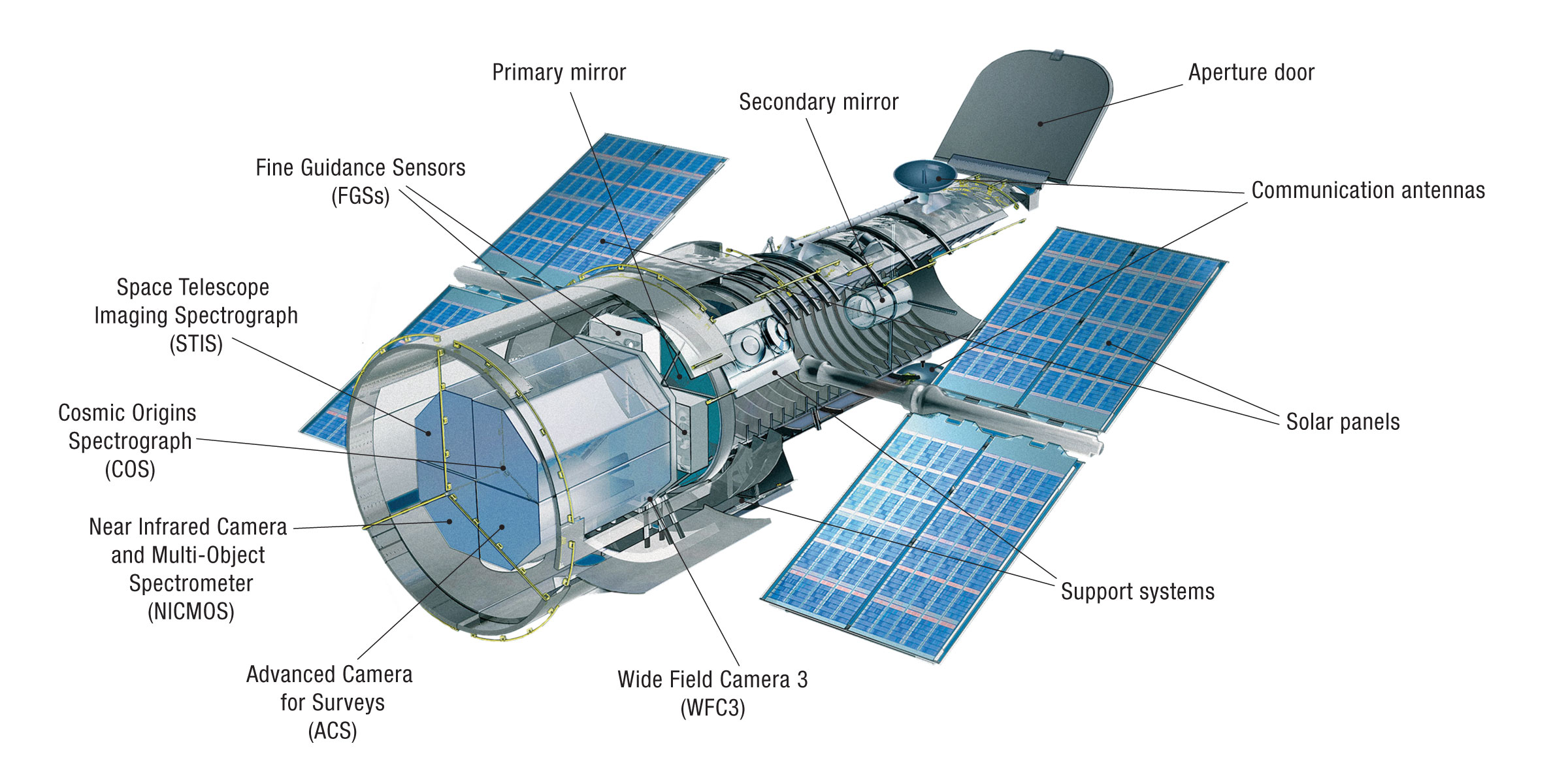

The Hubble Space Telescope (HST) is a 2.4-meter reflecting telescope, which was deployed in low-Earth orbit (600 kilometers) by the crew of the space shuttle Discovery (STS-31) on 25 April 1990. HST was designed to be a different type of mission for NASA -- a long-term, space-based observatory with regular servicing missions. HST's current complement of science instruments includes three cameras (ACS, WFC3/UVIS, and WFC3/IR), two spectrographs (COS and STIS), and fine guidance sensors (FGS). These science instruments can produce high-resolution images and spectra of astronomical objects and can also observe ultraviolet radiation, which is blocked by the atmosphere and therefore unavailable to ground-based telescopes. In the infrared portion of the spectrum, the Earth’s atmosphere adds a great deal of background, which is absent in Hubble observations.

After launch, scientists discovered spherical aberration in HST's main mirror, which resulted in fuzzy images. The STS-61 (Endeavour) mission of December 1993 corrected the effects of spherical aberration and fully restored the functionality of HST. Since then, servicing missions have regularly provided opportunities to repair aging and failed equipment as well as incorporate new technologies in the telescope, especially in the Science Instruments that are the heart of its operations. HST was on a three-year cycle of on-orbit servicing, with servicing missions in December 1993, February 1997, December 1999, March 2002 and May 2009. No future servicing missions are planned at this time.

More information and documentation on HST can be found at the HST website.

Active From

Launch: April 1990

Observation: March 18, 1991 - present

Resolution

Imaging FWHM ≈ 0.067-0.156 arcsec

Spectroscopy:  R (𝛌 / ∆ 𝛌) ≈ 70-114,000

Capabilities

  • UV, optical, and NIR imaging
  • UV, optical, and NIR spectroscopy
  • Coronagraphy
  • Interferometry for precision astrometry

Documentation

Instruments

WFC3

WFC3

Wide Field Camera 3
COS

COS

Cosmic Origins Spectrograph
STIS

STIS

Space Telescope Imaging Spectrograph
ACS

ACS

Advanced Camera for Surveys
FGS

FGS

Fine Guidance Sensors
HSP

HSP

High Speed Photometer
FOS

FOS

Faint Object Spectrograph
FOC

FOC

Faint Object Camera
GHRS

GHRS

Goddard High-Resolution Spectrograph
NICMOS

NICMOS

Near Infrared Camera and Multi-Object Spectrometer
WF/PC

WF/PC

Wide Field/Planetary Camera 1
WFPC2

WFPC2

Wide Field and Planetary Camera 2
Instrument

Direct

Imaging

Coronography Polarimetry

Time-series

Observations

Spectroscopy Wavelength Coverage Instrument In-Service Dates
COS X     X   UV May 2009 - present
WFC3 X       X UV, Vis, IR May 2009 - present
ACS X X X X X UV, Vis Mar 2002 -Jan 2007 & May 2009 - present
STIS X X   X X UV, Vis

Feb 1997 -Aug 2004 & May 2009 - present

NICMOS X X X     IR Feb 1997 - Jan 1999 & Mar 2002 - Sep 2008
WFPC2 X   X     UV, Vis Dec 1993 - May 2009
FOC X   X   X UV, Vis Apr 1990 - Mar 2002
FOS     X X X UV, Vis Apr 1990 - Feb 1997
GHRS       X X UV Apr 1990 - Feb 1997
HSP     X X   UV, Vis Apr 1990 - Nov 1993
WF/PC X   X   X UV, Vis Apr 1990 - Nov 1993



Search Tools

Hubble Source Catalog Search

The Hubble Source Catalog (HSC) is designed to optimize science from the Hubble Space Telescope by combining the tens of thousands of visit-based source lists in the Hubble Legacy Archive (HLA) into a single master catalog

Hubble Search

Search for Hubble data with this easy to use form. New to Hubble data? This is a great place to start.

MAST Portal

Search multiple collections of astronomical data-sets from one place—images, spectra, catalogs, timeseries, publication records and more

Astroquery

A streamlined interface for Python users to access data in MAST. Replicates most functions of the MAST Portal web interface. Access MAST queries using the same function conventions and return types available for all Astroquery services. Integrate easily with Astropy functionality and other Python analysis tools.

z.MAST

Search for extragalactic observations and catalog data from MAST high-level science products (HLSP). Download results for further analysis or quickly view detailed information by individual galaxy—aggregated data, image cutouts, observed SEDs, and observations

Amazon Web Services

This dataset contains calibrated and raw data for all of the currently active instruments on HST: ACS, COS, STIS and WFC3.

HST Program Information

To obtain information about a specific program, enter the Program ID or the Investigator's Name and hit one of the buttons to the right of the entry box. When entering an investigator's name, either just the LAST name or both the FIRST and LAST name may be specified.

HST Abstract Search

Search the HST proposal abstracts and/or proposal titles for specific strings of interest. You may also search the HST abstracts database for a specific Guest Investigator (either in combination with a string search of the abstracts or alone).

Retiring soon- HST Search

Classic data search form for the HST mission

Data Products

Hubble Legacy Archive

The Hubble Legacy Archive (HLA) is designed to optimize science from the Hubble Space Telescope by providing online, enhanced Hubble products and advanced browsing capabilities. The HLA is a joint project of the Space Telescope Science Institute (STScI), the Space Telescope European Coordinating Facility (ST-ECF), and the Canadian Astronomy Data Centre (CADC).

Hubble Catalog of Variables

The Hubble Catalog of Variables (HCV) is the first full, homogeneous, catalog of variable sources found in the Hubble Source Catalog (HSC), which is built out of publicly available images obtained with the WFPC2, ACS, and WFC3 instruments onboard the HST. The HCV is the deepest catalog of variables available. It includes variable stars in our Galaxy and nearby galaxies, as well as transients and variable active galactic nuclei.

MAST Data Product Types

Each mission hosted by MAST, and often each instrument within a mission, produces data products with a variety of semantic content.

MAST HLSPs

High Level Science Products are observations, catalogs, or models that complement, or are derived from, MAST-supported missions, including HST. HLSPs can include images, spectra, light curves, maps, source catalogs, or simulations. They can include observations from other telescopes, or data that have been processed in a way that differs from what's available in the originating archive.

Hubble Advanced Products

These 'Hubble Advanced Products' (HAP) are referred to as 'Single Visit Mosaics' (SVMs). They are all drizzled onto the same north-up pixel grid and may have improved relative alignment across filters for images acquired within the same visit, enabling easy comparison of the images through multiple filters.

Hubble Spectroscopic Legacy Archive

Since early 2016, the Hubble Spectroscopic Legacy Archive (HSLA) provides the community with all raw and associated combined spectra for COS far-ultraviolet data publicly available in the Mikulski Archive for Space Telescopes (MAST). These data are packaged into "smart archives" according to target type and scientific themes to facilitate the construction of archival samples for common science uses.
