HUT Data Products

Time-Tagged Photon Lists (IDF.FITS Files)

Each HUT observation produces a time-tagged, photon list file, which records the X coordinate and arrival times of every photon within the observation, along with a variety of calibration information within its header. The naming format of these files is given by:

"HUT1" or "HUT2". Data from the Astro-1 or Astro-2 mission, respectively.
A 3-digit, zero-padded integer. Designates the sequence number.
A 2-digit, zero-padded integer. Designates the exposure number.
"idf.fits" Specifies this is a photon-list file.

For example, the file "HUT132701idf.fits" can be interpreted as follows. The observation occurred during the Astro-1 mission, since it begins with the sequence "HUT1" (as opposed to "HUT2"). The sequence number is "327", while the final "01" specifies that this was the first exposure within this sequence.

The format of the idf.fits files consist of a primary HDU (HDU1) and four additional HDU extensions in the form of binary tables (HDU2, HDU3, HDU4, and HDU5). The contents of these HDU's are summarized in the table below.

Primary Header (HDU1)
Header Only: Exposure Information
Photon Event List (HDU2)
Binary Table (5 Fields/Columns)
TIME float Photon arrival time relative to EXPSTART (seconds)
XRAW short Detector X coordinate (0-2048)
X short Corrected X coordinate
COUNTS long Raw counts per pixel
STATUS_FLAGS byte Photon status flags
Calibration Table (HDU3)
Binary Table (5 Fields/Columns)
FLATFIELD double Flat-field correction (unitless)
WAVELENGTH double Wavelength (Å)
INV_SENS double Inverse sensitivity curve (erg/cm2/Å)
DT_COR_FAC double Dead-time correction (unitless)
DT_COR_ERR double Dead-time uncertainty (unitless)
Timeline Table (HDU4)
Binary Table (11 Fields/Columns)
TIME float Taken from raw file header, relative to EXPSTART (seconds)
STATUS_FLAGS byte Photon status flags
LIMBANG float Limb angle (degrees)
LONGITUDE float Spacecraft longitude (degrees)
LATITUDE float Spacecraft latitude (degrees)
HUT_PITCH_ERR float Pitch error based on HUT guide stars (degrees)
HUT_YAW_ERR float Yaw error based on HUT guide stars (degrees)
SOURCE_RATE short Excluding airglow lines (counts/second)
LY_ALPHA_RATE short Lyman α (counts/second)
O_I_RATE short O I λ1304 airglow (counts/second)
RATE_850_895 short Background rate from 850-895 Å (counts/second)

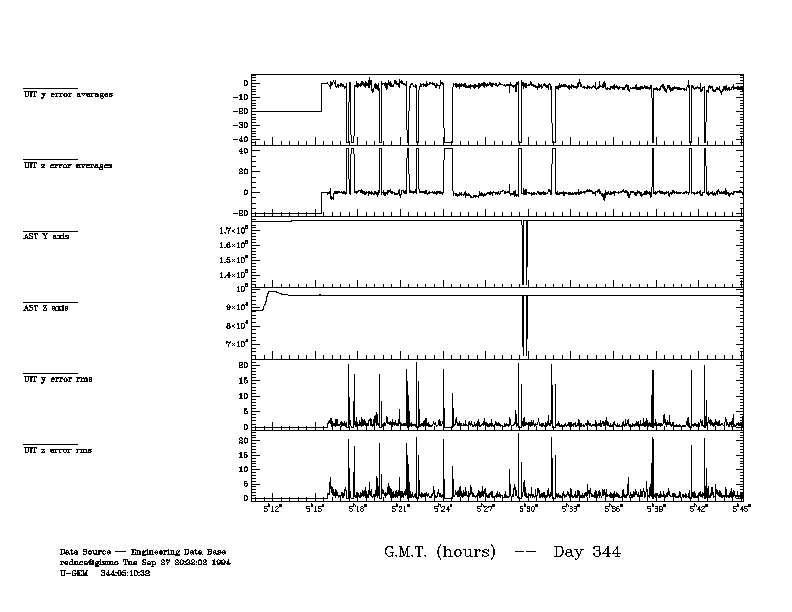

IMCS Table (HDU5)
Binary Table (4 Fields/Columns)
TIME float Taken from raw file header, relative to EXPSTART (seconds)
PIXEL_SHIFT short Correction for pointing error (pixels)
IMCS_PITCH_ERR float Computed pitch error (arcsec)
IMCS_YAW_ERR float Computed yaw error (arcsec)

Back to top

Extracted Spectra (CAL.FITS Files)

Each observation also has an extracted, calibrated spectrum derived from the time-tagged photon list (idf.fits file). Each extracted spectrum (cal.fits file) contains two FITS extensions. The naming convention of the file is identical to the idf.fits files. The first extension stores the extracted spectrum derived from all photons during the exposure (day + night). The second extension stores the extracted spectrum derived from just the orbital-night observations. If the entire exposure occurred during orbital night, then the extracted spectra in the first and second extensions are exactly the same. If the entire exposure occurred during orbital day, then the extracted spectrum in the second extension will have fluxes all set to zero.

The format of the cal.fits files consist of a primary HDU (HDU1) and two additional HDU extensions in the form of binary tables (HDU2 and HDU3). The contents of these HDU's are summarized in the table below.

Primary Header (HDU1)
Header Only: Exposure Information
Extracted Spectrum From Entire Exposure (HDU2)
Binary Table (5 Fields/Columns)
WAVE float Wavelength (Å)
FLUX float Flux (erg/cm2/s/Å)
ERROR float Poisson error in flux (erg/cm2/s/Å)
COUNTS int Raw counts, corrected for motion
WEIGHTS float Fully-corrected counts
Extracted Spectrum From Orbital Night Only (HDU3)
Binary Table (5 Fields/Columns)
WAVE float Wavelength (Å)
FLUX float Flux (erg/cm2/s/Å)
ERROR float Poisson error in flux (erg/cm2/s/Å)
COUNTS int Raw counts, corrected for motion
WEIGHTS float Fully-corrected counts

Back to top

TV Guider Images (TV.FITS Files)

Each observation can also contain one or more images of the target field (tv.fits files). The format of the tv.fits files consist of a single HDU, which contains the file header keywords from the associated idf.fits file, as well as a complete set of astrometric keywords.

A sample guider image for NGC 6791 is displayed below. The primary target is centered in the middle of the image on the cross hair. Guide stars are denoted by crosses, while the current, cumulative histogram of the spectrum is shown below. These images will allow users to confirm the location and orientation of the aperture relative to the primary target and guide stars.

Back to top

Quick-Look (Preview) Postscript Plots

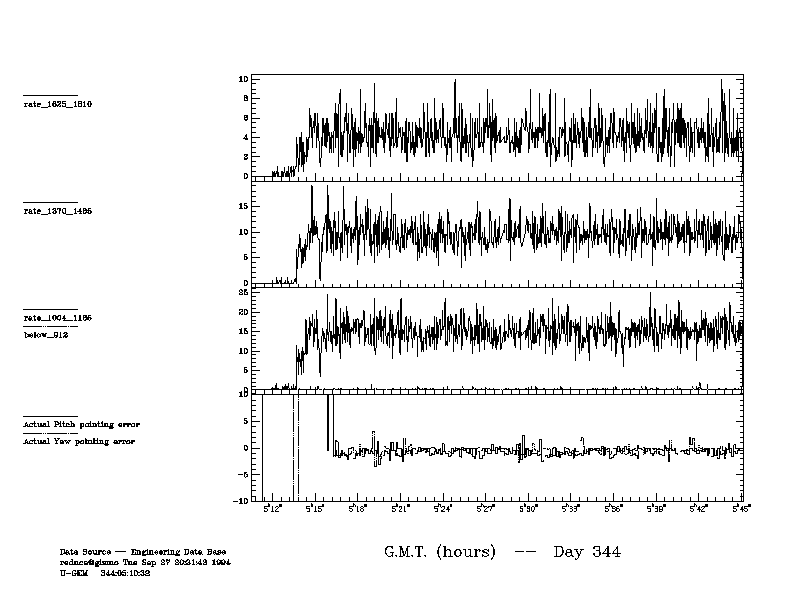

Each observation has a quick-look plot made of the extracted spectrum, consisting of three panels. The top panel plots the extracted flux as a function of wavelength. The middle panel plots the count rate of the source per second as a function of time. Areas where the target was less than 15 degrees from the Earth's limb, fell out of the aperture, occurred during orbital day time, experienced large amounts of pointing jitter, or passed through the South Atlantic Anomaly (SAA) are marked on this plot. The bottom panel plots the pitch and yaw errors computed from the guide stars and IMCS as different colored points. Additional information printed on the plots include the aperture used, total exposure time, and the IMCS-corrected count rates (if present).

These plots are available through the "Preview" pages, which can be found by clicking on the links in the "Data ID" column in the Search Results page after conducting a search through the HUT Search Form. They are also bundled with the associated idf.fits, cal.fits, and tv.fits files for download. An example quick-look plot for the white dwarf H1504+65 is shown below.

Back to top

Photon Status Flag Bit Codes

Below is a summary of the values for each bit code in the photon status flags.

Bit
Value
8 User-defined bad-time interval
7 Not used
6 Target out of aperture
5 Background unacceptably high
4 Observations during SAA (Astro-1 mission only)
3 Limb-angle violation
2 Airglow feature
1 Day/Night flag (day=1, night=0)
